440129-5
Manufacturer:
TE Connectivity
Mfr.Part #:
440129-5
Datasheet:
Description:

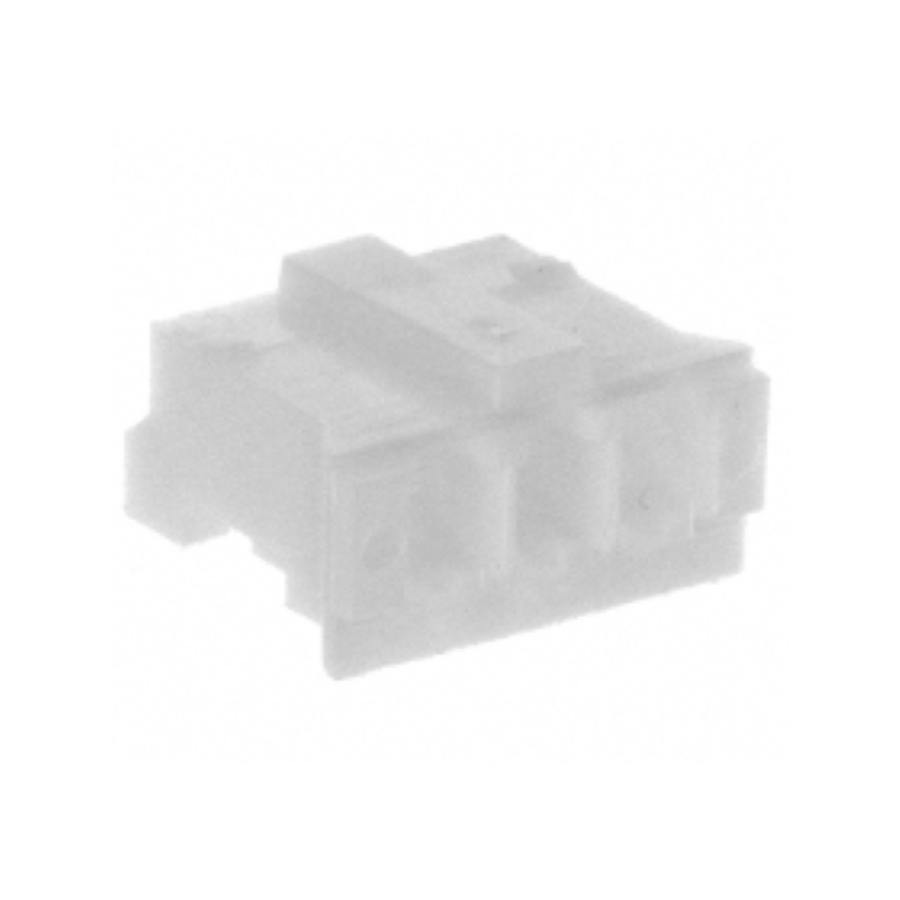

Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:5 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 11.7983 mm |
| Width | 6.9 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 4.4958 mm |
| Packaging | Bulk |
| Depth | 6.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Number of Contacts | 5 |
| ELV | Compliant |
| Connector Type | Receptacle, Socket |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Connector System | Wire-to-Board |
| Contact Current Rating | 3 A |
| Housing Color | Natural |
| Insulation Diameter | 1.4986 mm |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Retention | With |
Stock: 1533
Distributors
pcbx
pcbxUnit Price$0.12902
Ext.Price$0.12902
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12902 | $0.12902 |
| 10 | $0.06451 | $0.64510 |
| 50 | $0.05813 | $2.90650 |
| 100 | $0.05238 | $5.23800 |
| 500 | $0.04592 | $22.96000 |
| 1000 | $0.04026 | $40.26000 |
| 3000 | $0.03846 | $115.38000 |
| 5000 | $0.03675 | $183.75000 |
| 10000 | $0.03479 | $347.90000 |
